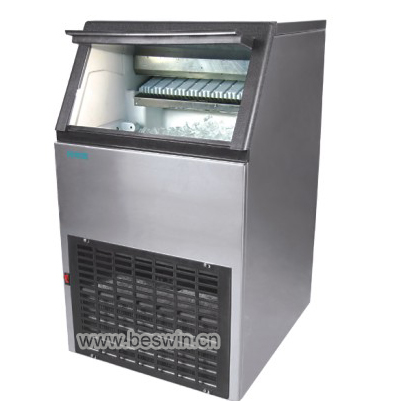

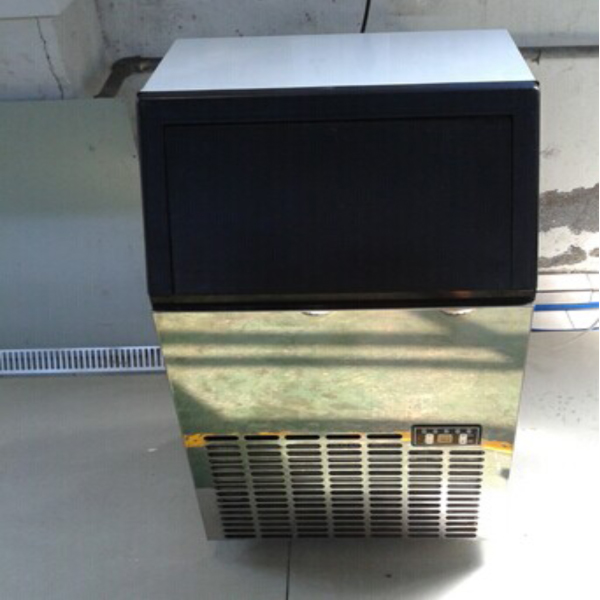

Product Name : Square Cube Commercial Ice maker 32 45 65kg

Product ID : HZB-32,45,65

Directions

Square Cube Commercial Ice maker 32kg, 45kg, 65kg

S/N	ITEM	HZB-32,45,65
1	Rated Volt/Frequency	220-240V/50Hz
2	Unit Model	HZB-32,45,65
3	Unit Style	Air front with booster pump & filter
4	Electrical Safety Authorization	CE CB
5	Climate	10-40℃
	Packing
6	Unit Size(no foot)mm	448x400x783
7	Unit Size(with foot）mm	448x400x798
8	Loading Quantity(20'/40'/40'HQ)	340pcs/40'HQ)
9	Package Size mm	502x457x850
10	Carton Style	2-corrugated
11	Package Style	base+cardboard
12	Net Weight KG	28.3
13	Gross Weight KG	30.5
	Performance
14	Ice capacity（Kg/24Hr,23℃ air,10℃ water ）	32;45;65
15	Rated current A	1.8A
16	Water tank volum L	2
17	Ice basket volume L	20kgs
18	Cycle time	13-16min
19	Ice cubes Qty per cycle	36
20	Ice cube size	23mm x 23mm x 23mm
21	Ice cube shape	square
22	Weight of one ice cube	8-10g
23	Water supply	Auto, 0.1-0.8MPa
24	Clean method	manually
25	Timer	No
	Unit configuration
26	Main struction（flip/drawer/slide door）	slide door, black
27	Interior structure	foaming
28	Cabinet structure & surface treatment	430BA, grille on front panel
	Refrigerant System
29	Refrigerant	R134a
30	Condenser size	240x420x64
31	Layers of condenser	2
32	Cooling mode of condenser	air cooled
33	Compressor
	Evaporator structure
34	Evaporator material and size	copper,
35	Surface treatment of Evaporator	nickel plated
	Other function
36	Trash ice	NO
37	Cold water	NO
38	Indicator of water shortage	YES
39	Indicator of ice full	YES
